Combined Fire Booster Pump System Stablizing for Water Supply And Fire Fighting

Packaging Details : PE film +Wooden Case

Supply Ability : 50 Set/Sets per Month

MOQ : 20 sets

Price : usd 7256/sets 20-29 sets

Place of Origin : China

Payment Terms : D/A,D/P,T/T

Customized : OEM,

Brand name : Readycome

Origin : Shanghai

Application : fire-fighting

HP : 2900r/min

Power : Electric

pressure : Low Pressure

Structure type : Single-stage Pump

Material : Cast Iron

Contact Now

Combined Fire Booster Pump Stablizing Equipment Water Supply and Fire-fighting System

System Composition and Features

The equipment consists of several key components, each playing a vital role in the overall functionality:

Pneumatic Tank: Constructed from high-quality materials, the pneumatic tank is designed to withstand extreme pressure fluctuations while maintaining optimal performance. Its advanced design ensures efficient energy storage and smooth pressure regulation.

Pump Assembly: The pump features a robust construction with precision-engineered components, including:

Pump casing: Made from corrosion-resistant materials to ensure long service life

Impeller: Strategically designed to maximize flow efficiency

Pump cover: Provides superior protection and easy maintenance access

Mechanical seal: Ensures leak-free operation under high pressure

Motor coaxial assembly: Offers precise alignment and efficient power transmission

Control System: The integrated control cabinet houses state-of-the-art control instruments that provide:

Automatic pressure regulation

Real-time monitoring of system parameters

Fault detection and alarm functions

Remote control capabilities

Combined Fire Booster Pump System Stablizing for Water Supply And Fire Fighting

Application

Landscape irrigation

High-rise buildings

Firefighting Pressurization

Sewage Disposal

Long-distance transportation

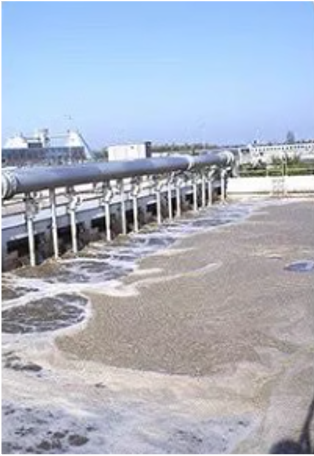

Waste water treatment plant

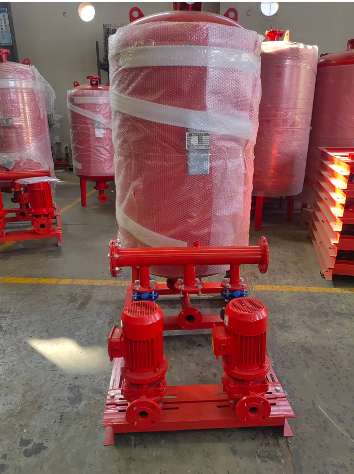

The regular set is combined with two pressure pumps (for a standby), one diaphragm pressure regulator tank, an electric control cabinet, instrumentation valves,a set of pipelines and related accessories.

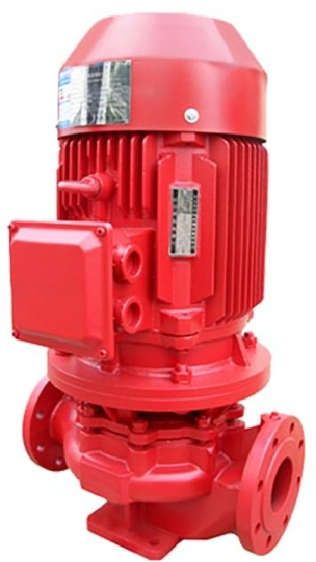

Vertical single-stage fire pumps

1. The fire pump has a compact structure, small

volume and beautiful appearance, and its vertical

structure determines a small installation area, and its

center of gravity coincides with the center of the pump

foot, which enhances the operation stability and service

life of the pump.
2. The suction and outlet of the fire pump are in

horizontal direction, which simplifies the connection of pipelines.
3. The head of the fire pump can be met by increasing

or decreasing the number of pump stages and cutting

the outer diameter of the impeller according to the needs, without changing the installation area, which is not

available in other pumps;
4. The motor is equipped with a rain cover, so the

pump can be used indoors and outdoors, thus saving

the construction cost.
5. The rotor of fire pump has small deflection that

lowers vibration and noise, so it runs smoothly with

long service life.

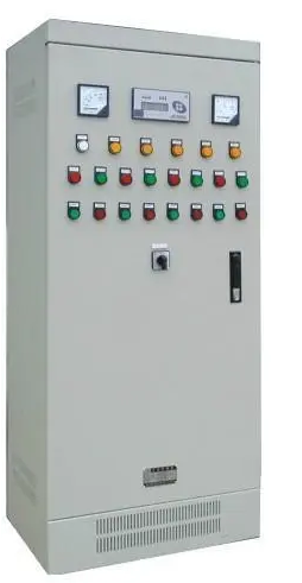

Control cabinet

1．wide range of uses: such as living water supply and drainage, firefighting system, irrigation, pressurization, air conditioning
cooling cycle, industrial water control, sewage discharge, etc. The power range of the control motor is between 0.18 ~ 250KW.
2. excellent quality: it is carefully designed and produced under stick quality control and the main electrical components are
selected of world-famous brand, reliable quality and stable operation.
3. Multi-functions equipment customized support with professional engineers and technicians.

Model No.	Products Name	Items	Flow	Head	Rotate Speed	Power
Model No.	Products Name	Items				L/S	Mpa	R/Min	KW
W1.5/0.3-WYL	Stabilized pressure pump	XBD5.0/1.38W-L	1.38	50	2900	3
		Control cabinet	WYK-2P-3	1+1 (1 use,1 backup)				Mpa
		Diaphragm type pneumatic tank	A : 8000.6 / B :10000.6 / C :1200*0.6
		Piping accessories	Including carbon steel outlet pipes, valves, soft joints, channel steel base, etc.
W3.0/0.35-1.6-WY	Stabilized pressure pump	XBD10.2/3.3W-GDL	3.3	102	2900	7.5
		Control cabinet	WYK-2P-7.5	1+1 (1 use,1 backup)
		Diaphragm type pneumatic tank	A : 8000.6 / B :10000.6 / C :1200*0.6
		Piping accessories	Including carbon steel outlet pipes, valves, soft joints, channel steel base, etc.
