Superimposed Pressure Water Pump Water Supply Equipment With Frequency Convener

Price : CN¥181,415.25/sets 1-4 sets

warranty : 1 years

customized support : OEM, ODM, OBM

brand name : Readycome

place of origin : Shanghai, China

application : Commercial Buildings, Developing World Water Solutions, Family Homes, Food and Beverage Industry, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Pharmaceutical industry, Washing and Cleaning, Water Distribution

horsepower : Customized

power source : Electric

pressure : Low Pressure

structure : Multistage Pump

cable length : Customized

outlet size : DN50-DN300, Customized

voltage : 220V-380V, Customized

power : 1kw--150KW

motor : Customized

Function : High Efficiency Low Cost

Advantage : High Performance

Material : Stainless Steel

Usage : water supply

Theory : Booster Pumps

Standard or Nonstandard : Standanrd

Application scope : Water Pressurized

Feature : Energy Saving

Tpye : Frequency

Contact Now

Superimposed Pressure Water Pump with Frequency Convener Water Supply Equipment

The constant pressure frequency conversion water supply equipment adopted the most advanced PID frequency conversion technology in the world. We use the PLCs formed with famous brand and stable quality assured frequency converter to control pumps and adjust the rotational speed in order to realize the closed-loop adjustment of the constant pressure variable water supply and to make the water supply system most reasonable and economic operation effectively and automatically at the same time.

Frequency conversion control cabinet

According to the different control programs, you can choose the main pump fixed frequency conversion, the rest of the spare pump automatically alternating rotation mode of operation.
Or you can also choose the main pump, the spare pump together with the alternating rotation mode of operation, the main and spare pumps for each other as a standby, in order to prevent the standby pumps are not used for a long time and rust.

Advantages
1. Solve the problem of low water pressure

The use of constant pressure frequency conversion water supply equipment stabilizes the whole building every house water supply.

2, Avoid water pollution caused by the abuse of roof tanks

Replaces the traditional roof tank water supply method and eliminates the source of water pollution.
3．Reduced construction costs and increased space utilization

Replace the normal roof water tank, so that the building force reduction, simple structure, cost saved.
4．Save electricity, reduce floor space

More than 30% power saving than general water supply equipment, the equipment covers a small area, simple installation, shorten the construction period.

Main features
1. Efficient energy saving
The system automatically adjusts the rotational speed of the pump and the number of pumps according to the change

of water consumption of the user, so that the equipment is always running at high efficiency, and the energy-saving

effect is remarkable.
2. Maintain constant pressure
Under the drastic change of water consumption, the water pressure can be kept stable, providing users with a

comfortable water supply environment.
3. Perfect protection function
The system has various protections such as short-circuit, phase failure, over-current, over-voltage, overheating and

overload.
4. Superior material composition
The pump, main pipelines and accessories are made of stainless steel which complied with health standard and

secured clean water quality.
5. Humanized design
Design products according to customer needs and never waste customer resources.

Product Paramenters

Control Method	Frequency Control
Installation place	Indoor
Ambient temperature	+5℃~ +40℃
Conveying liquid	Fresh Water
Liquid temperature	0 ~70℃
Maximum operating pressure (suction pressure + pump shutdown dead center)	20kg/CM
Minimum suction pressure	0.2 kg/CM
Allowable suction pressure	Subject to maximum operating pressure
Water pump	Vertical/horizontal multi-stage centrifugal pumps
Number of pump combinations	2 ~ 6 sets
Power supply	Three-phase X 220/ 380V X 50Hz
Suction and output pipe	Stainless steel pipe

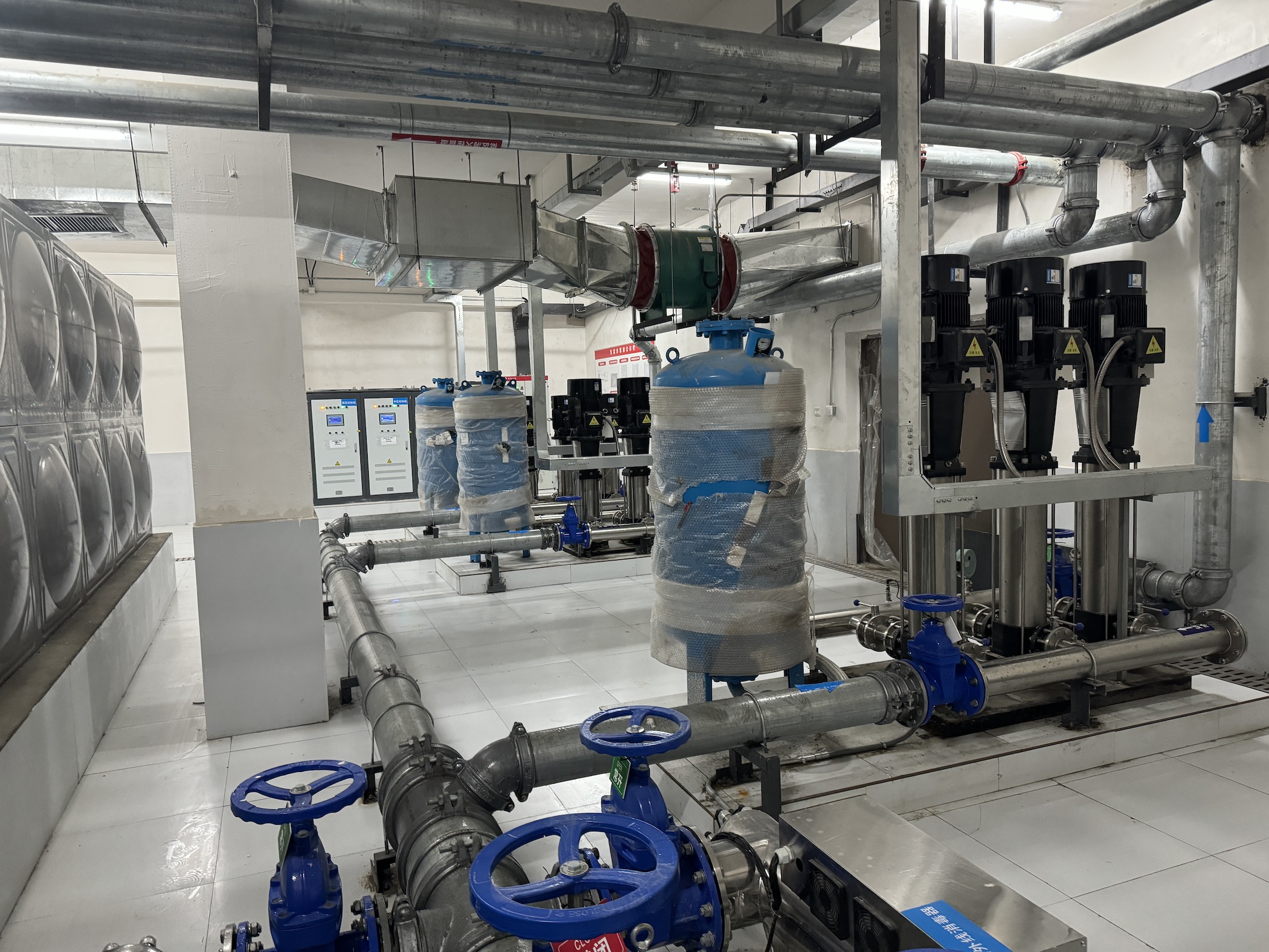

Projects
